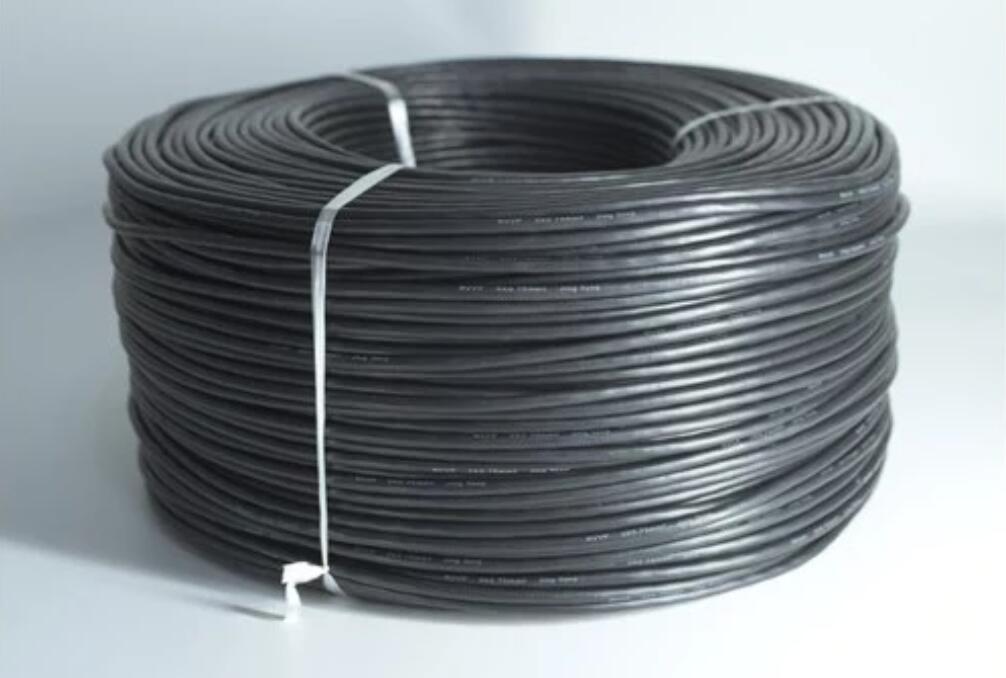

PVC LSOH Jacket 0.50mm Drop Wire Telephone Cable

Brand Name : WRC

Model Number : drop wire

Certification : ISO9001

Place of Origin : China

MOQ : 3000m

Price : USD0.08-USD2.0 per meter

Payment Terms : Western Union, MoneyGram, L/C, T/T

Delivery Time : 100000000m per month

Packaging Details : Export Carton Packing

Conductor : Copper wire or tin-plated copper wire standed

conductor diameter : 0.50mm±0.005mm

Jacket : PVC&LSOH

Pairs : 2/4/6/8/10/20/50 or as per your request

Operating temperature : -20°C to+60°C

application : telecommunications

Color : white , gray, black or optional

Contact Now

Drop Wire Telephone Cable



Specification

 Item  5m RJ11 CCS telephone cable
 Conductor Material  CU,CCA,CCS
Conductor Diameter  0.40mm / 0.45mm / 0.50mm or as request
Pair Insulation  PE or PVC
Number of Twisted Pair  2 core cable

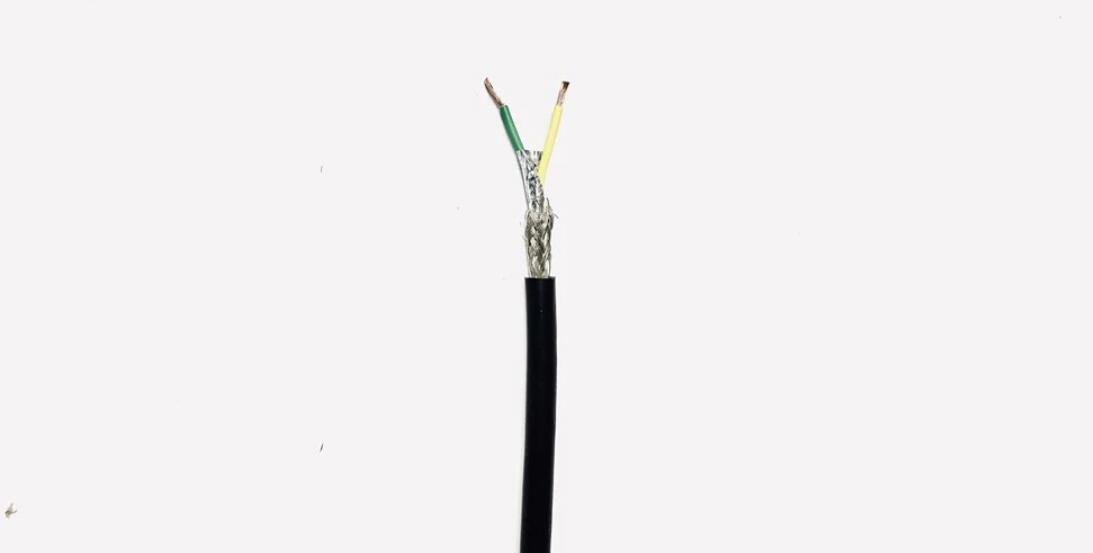

Shielding  UTP: Unshield
 STP/FTP : Mylar+AL Foil+Drain
 Armoured
 Jelly Filled   As your request
 Rip Cord  Yes
 Outer Jacket   PVC / PE / LSZH
 Jacket Color  White,Black, Gray or as request
 Installation Temperature  0°C to +60°C
 Operating temperature   -20°C to +75°C
 Certificate  CE,ROHS,SGS
 Application  Telecom wiring system


PVC LSOH Jacket 0.50mm Drop Wire Telephone Cable

PVC LSOH Jacket 0.50mm Drop Wire Telephone Cable



Electrical Characteristic



Frequency (MHz) IL-Max (dB/100m) NEXT Min(dB/100m) PSNEXT Min(dB/100m) ELFEXT Min(dB/100m)

RL-Min(dB)
1 2.6 41 41 39 12
4 5.6 32 32 27 12
10 9.7 26 26 19 12
16 13.1 23 23 15 10

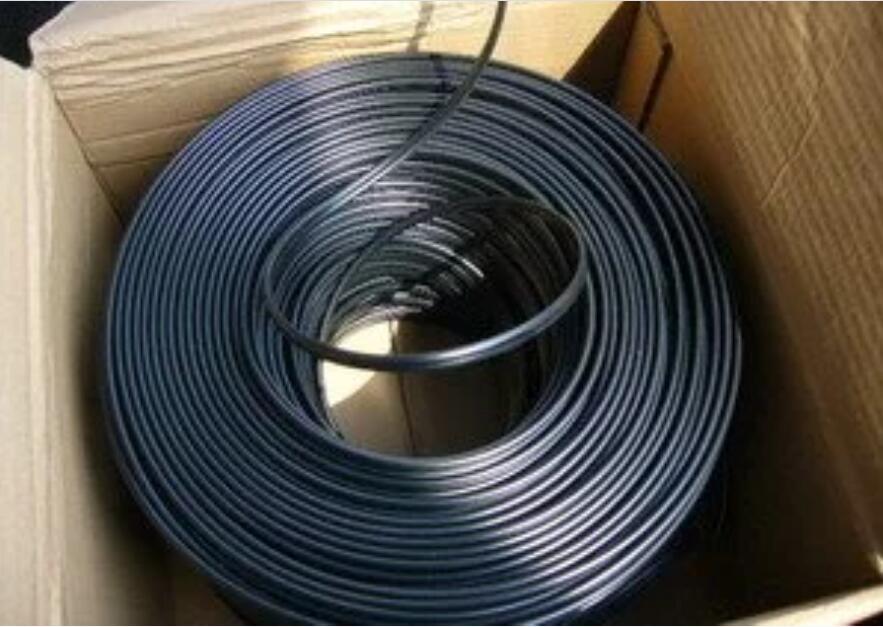

Packing

 Packing detail  100m/roll, 200m/roll, 300m/roll,500m/roll or as request
 Inner Package  Wooden reel, plastic reel, and paper reel available
 Outer Package  Carton box, pull out box, pallet available.
 Shipping time  After receving the deposit 7-10 days
 mode of transport  Sea freight, Express(DHL,UPS,FEDEX, TNT),Train Way

PVC LSOH Jacket 0.50mm Drop Wire Telephone Cable
