5m Telecommunication Copper Drop wire Telephone Copper Cable

Brand Name : WRC-Drop wire telephone cable in telecommunication copper wire cable

Model Number : Drop wire telephone cable in telecommunication copper wire cable

Certification : ISO9001

Place of Origin : China

MOQ : 3000m

Price : USD0.072-USD0.20 per meter

Payment Terms : Western Union, MoneyGram, L/C, T/T

Delivery Time : 100000000m per month

Packaging Details : Export Carton Packing

Conductor : Copper wire or tin-plated copper wire standed

conductor diameter : 0.50mm±0.005mm

Jacket : PVC,PE,LSOH,or as per your requirement.

Pairs : 10/20/50/100/150/200/300-1000 or as per your request

Operating temperature : -20°C to +60°C

application : telecommunications

Color : white , gray, black or optional

PE : environmental protection

OEM : Available

Contact Now

Drop wire telephone cable in telecommunication drop wire cable



Description of Drop wire telephone cable in telecommunication drop wire cable
Suitable for installation of industrial and domestic utilisation on telecoomunications and information processing systems, in dry and moisture operating areas of buildings. Its production is according to NFC C 93-529 for SYT1 series and NFC 93-526/527/528 for PTT series.


Specification of Drop wire telephone cable in telecommunication drop wire cable

 Item  5m RJ11 CCS telephone cable
 Conductor Material  CU,CCA,CCS
Conductor Diameter  0.40mm / 0.45mm / 0.50mm or as request
Pair Insulation  PE or PVC
Number of Twisted Pair  2 core cable
Shielding  UTP: Unshield
 STP/FTP : Mylar+AL Foil+Drain
 Armoured
 Jelly Filled   As per your requirement
 Rip Cord  Yes
 Outer Jacket   PVC / PE / LSZH
 Jacket Color  White,Black, Gray or as request
 Installation Temperature  0°C to +60°C
 Operating temperature   -20°C to +75°C
 Certificate  ISO9001,CE,ROHS,SGS
 Application  Telecom wiring system

Electrical Characteristic of Drop wire telephone cable in telecommunication drop wire cable

Frequency (MHz) IL-Max (dB/100m) NEXT Min(dB/100m) PSNEXT Min(dB/100m) ELFEXT Min(dB/100m) RL-Min(dB)
1 2.6 41 41 39 12
4 5.6 32 32 27 12
10 9.7 26 26 19 12
16 13.1 23 23 15 10



Packing of Drop wire telephone cable in telecommunication drop wire cable

Packing detail 100m/roll, 200m/roll, 300m/roll,500m/roll or as request
Inner Package Wooden reel, plastic reel, and paper reel available
Outer Package Carton box, pull out box, pallet available.
Shipping time After receving the deposit 7-10 days
mode of transport

Sea freight, Express(DHL,UPS,FEDEX, TNT),Train Way

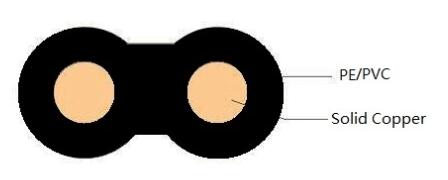

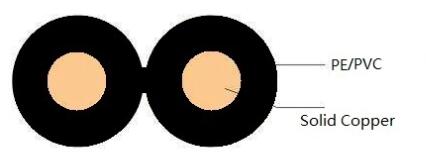

Drawings of Drop wire telephone cable in telecommunication drop wire cable


5m Telecommunication Copper Drop wire Telephone Copper Cable

5m Telecommunication Copper Drop wire Telephone Copper Cable

5m Telecommunication Copper Drop wire Telephone Copper Cable




5m Telecommunication Copper Drop wire Telephone Copper Cable
